Asrock | SKU:
B760M-HDV/M.2
MB Asrock 1700 Intel B760M HDV/M.2- 2xDDR5- 4SATA3- M.2 Gen4 and Gen3- HDMI- DP- D-sub- mATX
Quantità in arrivo: 0 entro il
Codice Bestit: ASB760M-HDVM2
€74,48
Unit price
/
Unavailable
Quantità scatola/pallet: 20
Couldn't load pickup availability
Garanzia
Garanzia
Info: garanzia 2 anni con sostituzione
Link: https://asrock.it/assistenza-prodotti-asrock/
MB Asrock 1700 Intel B760M HDV/M.2- 2xDDR5- 4SATA3- M.2 Gen4 and Ge...
€74,48
Unit price
/
Unavailable
Description
Description
- Intel LGA 1700 Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen , Intel Core i9 14th Gen
- Intel B760 Realtek ALC897 7.1 channel micro ATX PC
- DDR5-SDRAM 2 DIMM Non-ECC Maximum RAM supported: 96 GB
- M.2, SATA III RAID support
- BIOS type: EFI AMI 128 Mbit
- 2.5 Gigabit Ethernet
| Processor | |
|---|---|
| Compatible processors | Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Jan |
| Processor socket | LGA 1700 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Without buffering | Yes |
| Maximum RAM supported | 96GB |
| Non-ECC | Yes |
| Memory channels | Dual-channel |
| type of memory slot | DIMM |
| Number of memory slots | 2 |
| Supported memory types | DDR5-SDRAM |
| Storage controller | |
|---|---|
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| Graphics | |
|---|---|
| Parallel process technology | Not supported |
| Internal I/O | |
|---|---|
| RGB LED connector | Yes |
| TPM connector | Yes |
| CPU fan connector | Yes |
| ATX connector (24-PIN) | Yes |
| Front audio panel connector | Yes |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Connectors | 1 |
| USB 2.0 connectors | 2 |

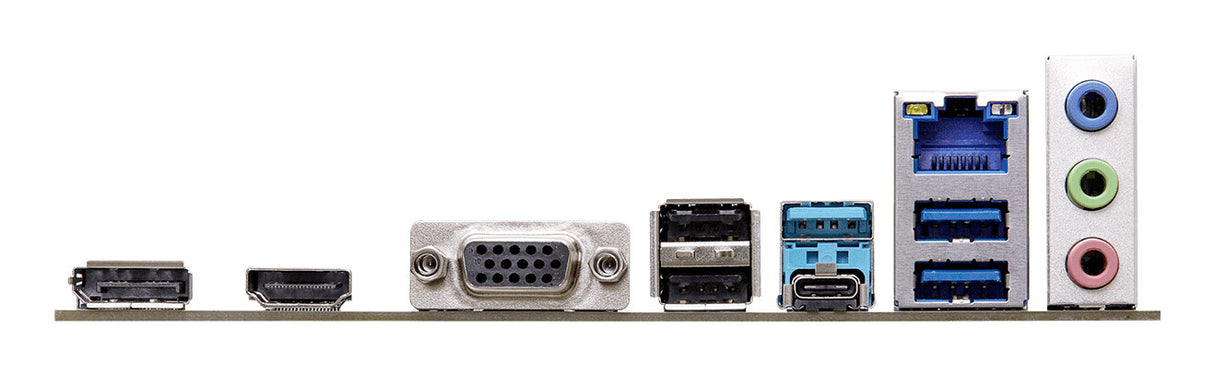

| Rear panel I/O ports | |
|---|---|
| Microphone, input plug | Yes |
| Line input | Yes |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) port quantity | 1 |
| Ethernet LAN ports quantity (RJ-45) | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 2.0 port quantity | 2 |
| Network connection | |
|---|---|
| Wifi | No |
| LAN controllers | Dragon RTL8125BG |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN connection | Yes |
| Characteristics | |
|---|---|
| Windows operating system supported | Windows 10 x64, Windows 11 x64 |
| Audio system | 7.1 channels |
| Audio chips | Realtek ALC897 |
| Motherboard chipset | Intel B760 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Expansion slot | |
|---|---|
| Number of M.2 (M) slots | 1 |
| PCI Express x16 slot (Gen 4.x) | 1 |
| PCI Express x1 slot (Gen 3.x) | 2 |
| BIOS | |
|---|---|
| BIOS memory size | 128 Mbit |
| BIOS type | EFI AMI |
| Dimensions and weight | |
|---|---|
| Depth | 201 mm |
| Length | 244 mm |
| Packaging contents | |
|---|---|
| Cables included | SATA |
| Screws included | Yes |
