Asrock | SKU:
B760M-HDV/M.2 D4

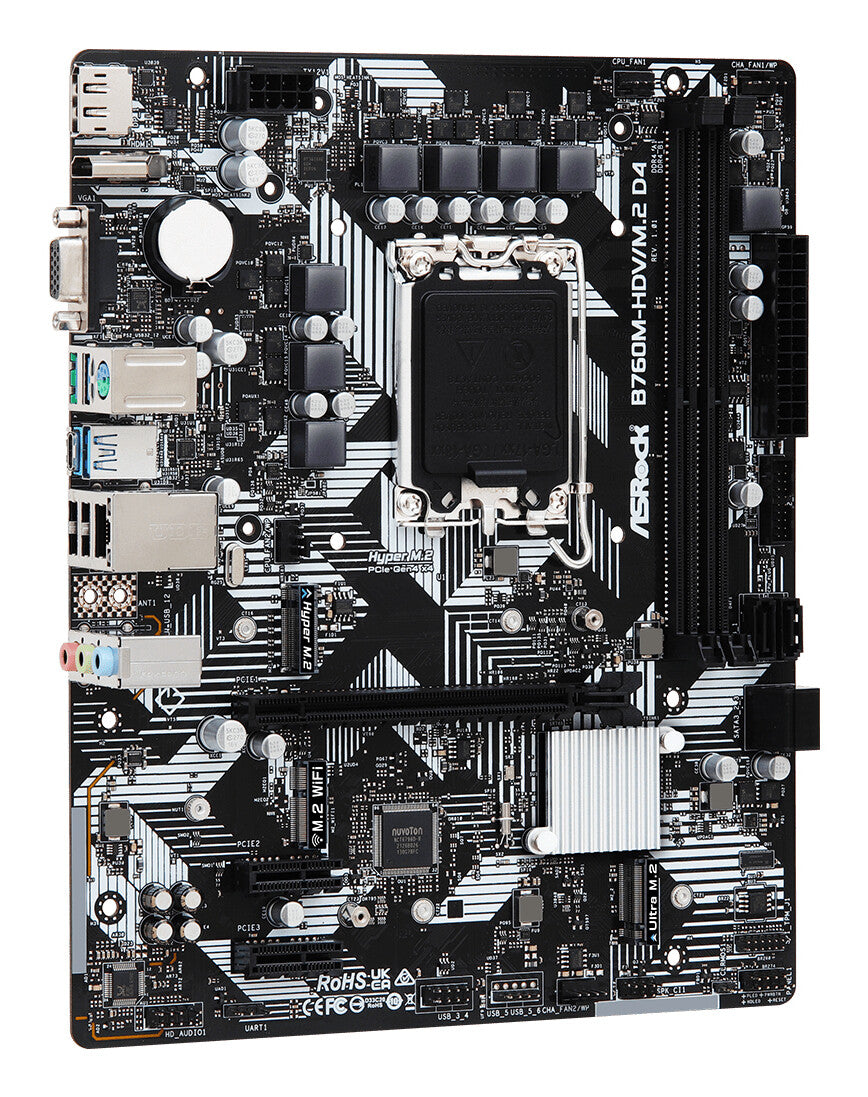

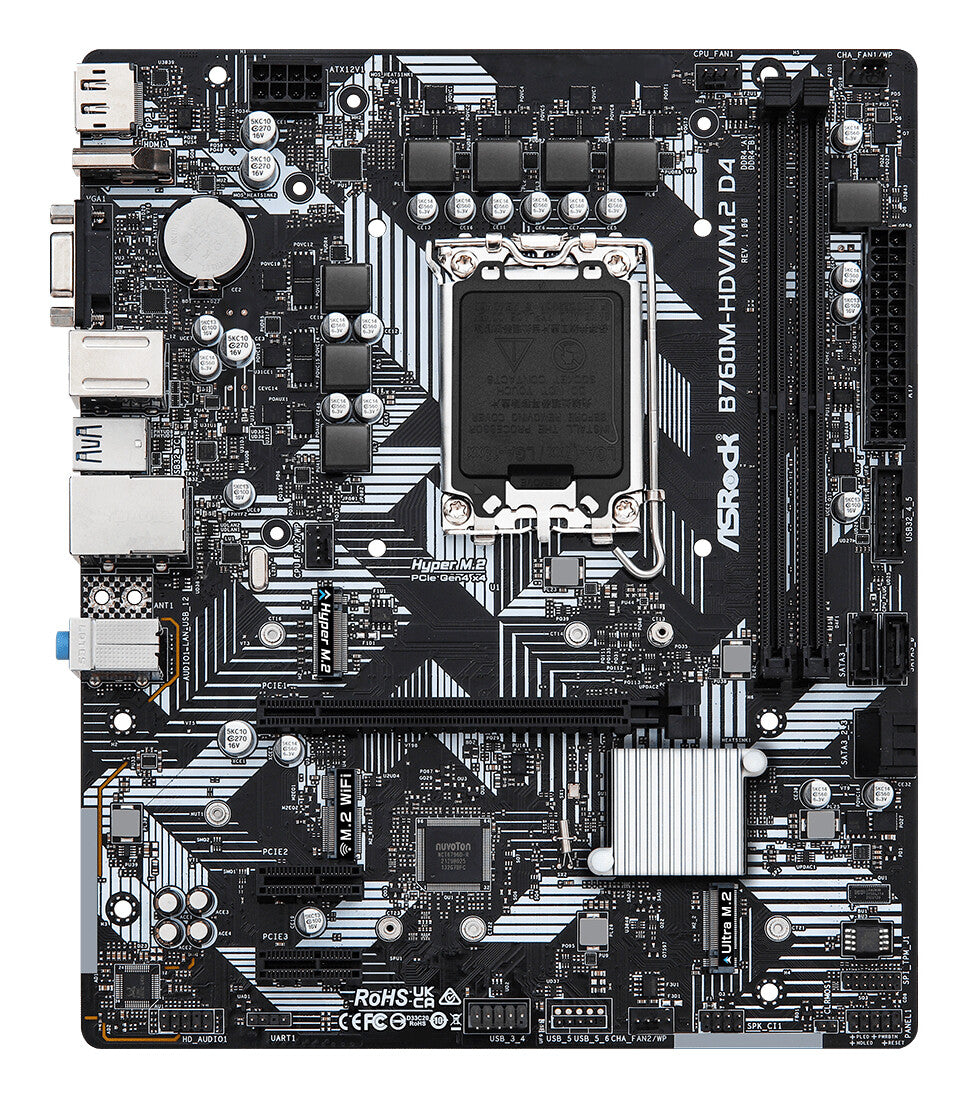

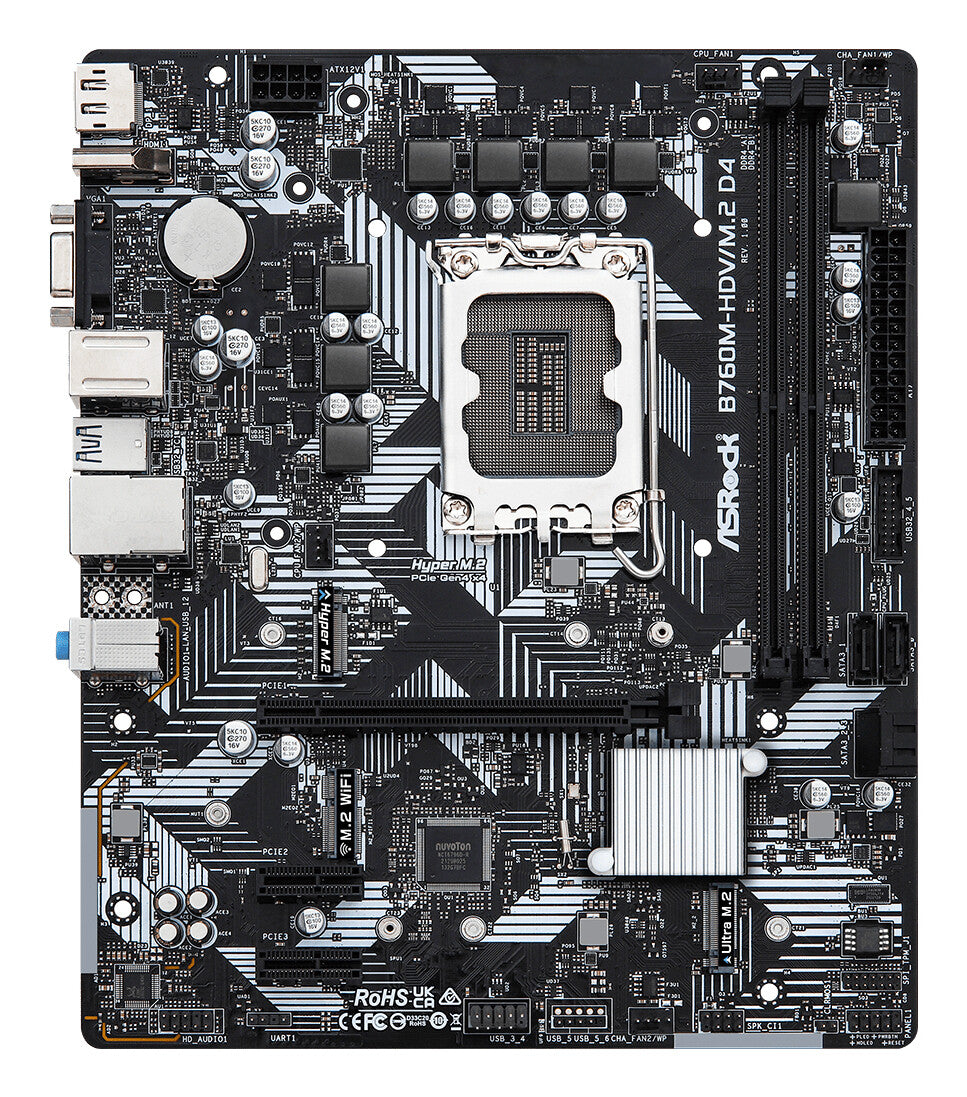

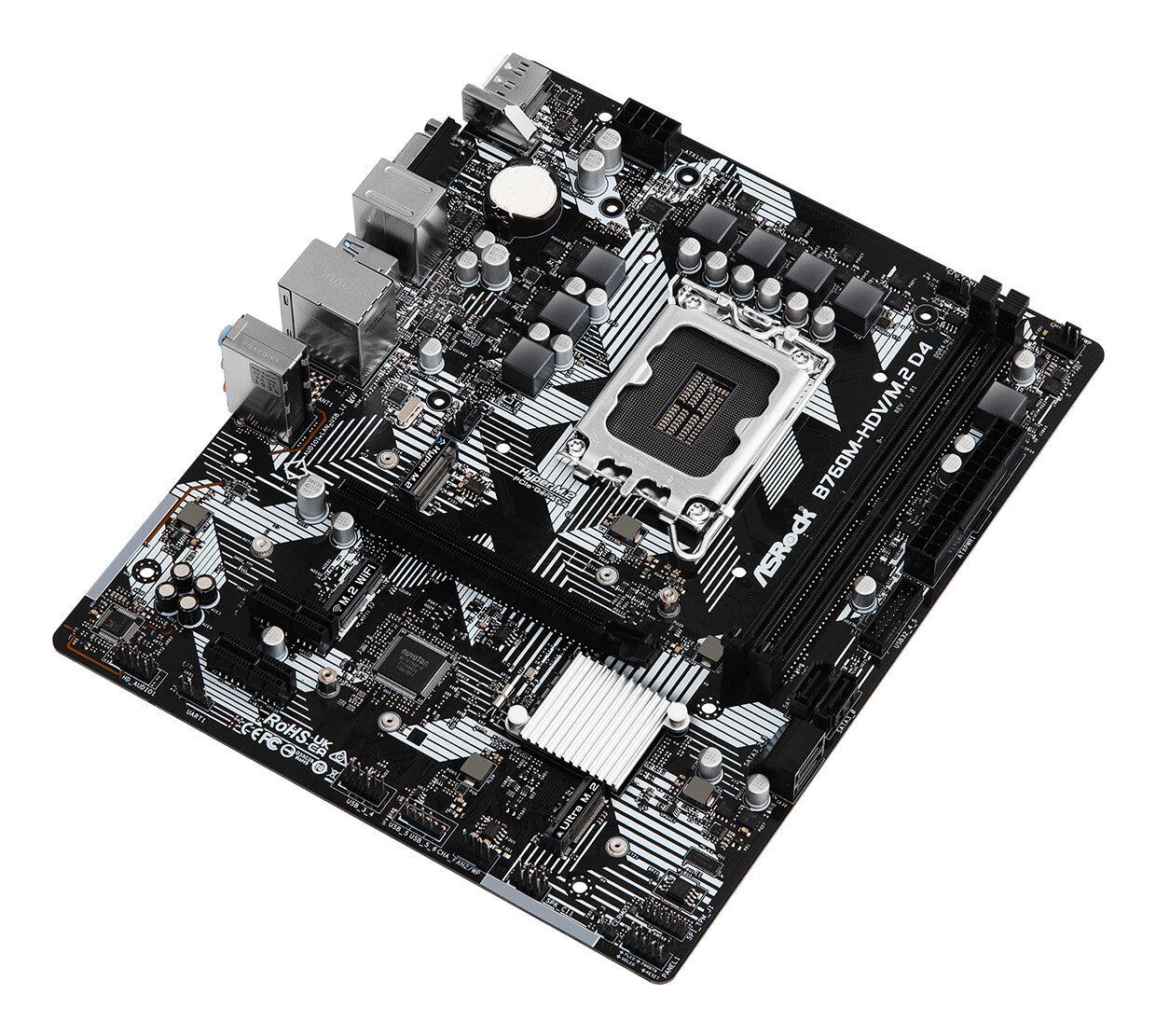

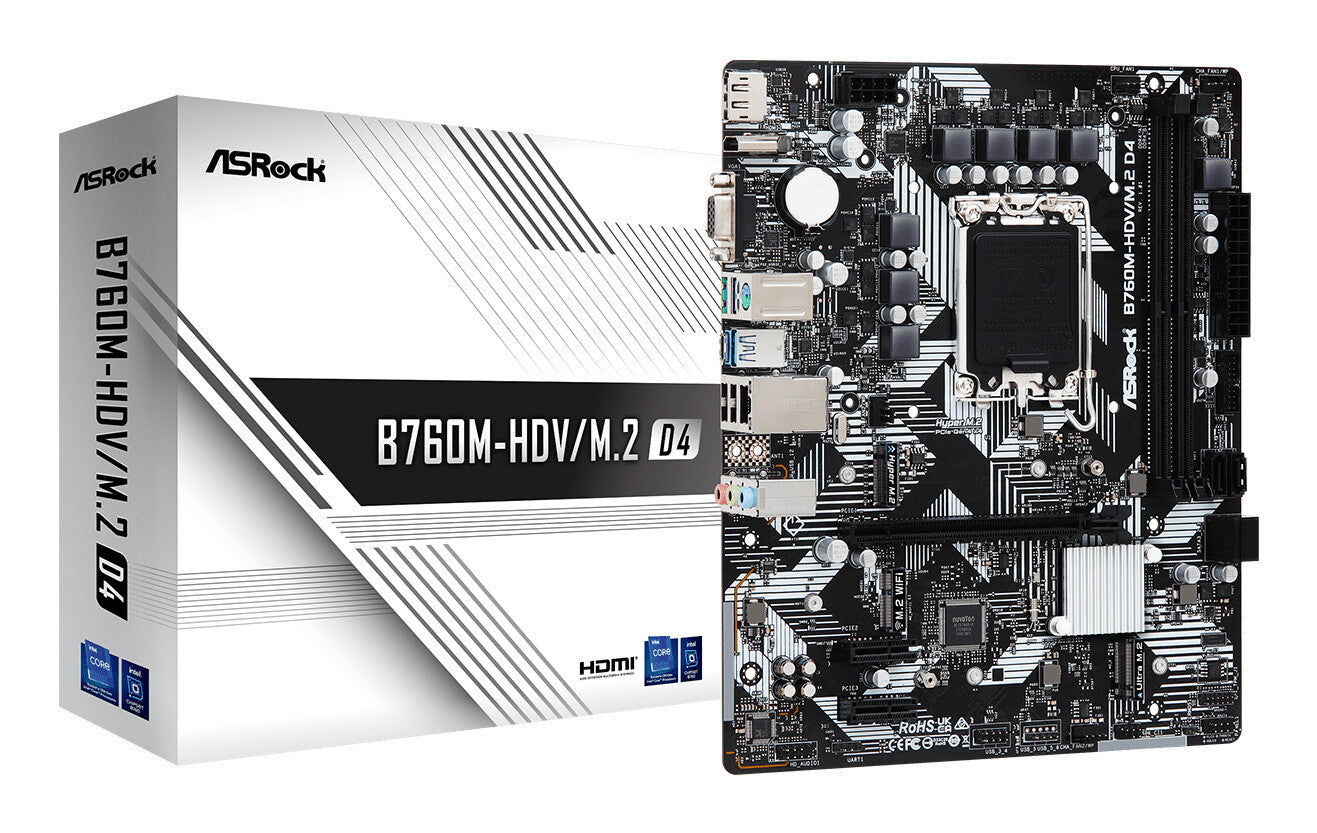

MB Asrock 1700 Intel B760M HDV/M.2 D4- 2xDDR4- 4SATA3- 1xHyper M.2 1xUltra M.2- HDMI DP D-sub mATX
Quantità in arrivo: 0 entro il
Codice Bestit: ASB760MHDVM2D4
€66,64
Unit price
/
Unavailable
Quantità scatola/pallet: 20
Couldn't load pickup availability
Garanzia
Garanzia
Info: garanzia 2 anni con sostituzione
Link: https://asrock.it/assistenza-prodotti-asrock/
MB Asrock 1700 Intel B760M HDV/M.2 D4- 2xDDR4- 4SATA3- 1xHyper M.2 ...
€66,64
Unit price
/
Unavailable
Description
Description
- Intel LGA 1700 Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
- Intel B760 Realtek ALC897 7.1 channel micro ATX PC
- DDR4-SDRAM 2 DIMM Non-ECC Maximum RAM supported: 64 GB
- M.2, SATA III RAID support
- BIOS type: UEFI AMI 128 Mbit
- Gigabit Ethernet
| Processor | |
|---|---|
| Maximum number of SMP processors | 1 |
| Compatible processors | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Processor socket | LGA 1700 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Without buffering | Yes |
| Maximum RAM supported | 64GB |
| Supported memory speeds | 3200,4400,5333 MHz |
| Non-ECC | Yes |
| Memory channels | Dual-channel |
| type of memory slot | DIMM |
| Number of memory slots | 2 |
| Supported memory types | DDR4-SDRAM |
| Storage controller | |
|---|---|
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| Graphics | |
|---|---|
| HDCP | Yes |
| Parallel process technology | Not supported |
| Internal I/O | |
|---|---|
| TPM connector | Yes |
| EPS Power Connector (8-Pin) | Yes |
| Chassis intrusion connector | Yes |
| CPU fan connector | Yes |
| ATX connector (24-PIN) | Yes |
| Front panel connector | Yes |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Connectors | 2 |
| USB 2.0 connectors | 3 |

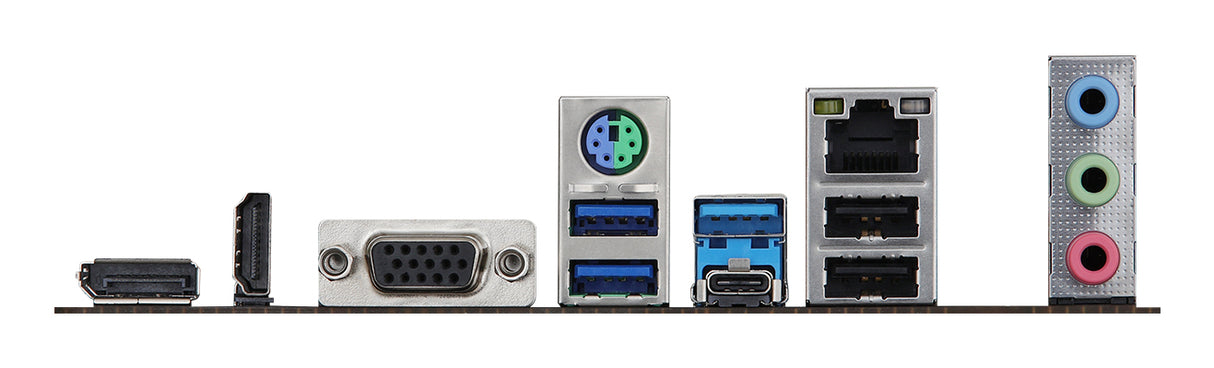

| Rear panel I/O ports | |
|---|---|
| Microphone, input plug | Yes |
| Line input | Yes |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) port quantity | 1 |
| PS/2 ports quantity | 1 |
| Ethernet LAN ports quantity (RJ-45) | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 2.0 port quantity | 2 |
| Network connection | |
|---|---|
| Wifi | No |
| LAN controllers | Realtek RTL8111H |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN connection | Yes |
| Characteristics | |
|---|---|
| Certification | - FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required) |
| Windows operating system supported | Windows 10 Education x64, Windows 11 x64 |
| Audio system | 7.1 channels |
| Audio chips | Realtek ALC897 |
| Motherboard chipset | Intel B760 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Expansion slot | |
|---|---|
| Number of M.2 (M) slots | 1 |
| PCI Express x16 slot (Gen 4.x) | 1 |
| PCI Express x1 slot (Gen 3.x) | 2 |
| BIOS | |
|---|---|
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Dimensions and weight | |
|---|---|
| Depth | 201 mm |
| Length | 244 mm |
| Packaging contents | |
|---|---|
| Cables included | SATA |
